Workflow Modeler (Recommended)

The Workflow Modeler provides a modern, React-based visual workflow editor for Drupal. Built on React Flow, it offers a professional drag-and-drop interface for creating and editing workflow models — complete with real-time configuration, execution replay, live testing, and full keyboard accessibility.

This modeler is the recommended editor for ECA and is the successor to the BPMN.iO modeler.

Key Features

• Visual Workflow Editing: Drag-and-drop nodes onto an infinite canvas, connect them with edges, and configure components through dynamic forms.
• Quick-Add: Context-aware popup for adding successors (actions, gateways, conditions) directly from nodes or edges.
• Execution Replay: Load past execution data, step through it visually, and inspect token values.
• Live Testing: Trigger workflow execution directly from the modeler.
• Export: Export models as Drupal Recipes, archives, JSON, or SVG.
• Accessibility: WCAG AA compliant with full keyboard navigation and screen reader support.
• Dark Mode: Built-in support for light and dark themes.

Installation

Install the module using Composer:

composer require drupal/modeler
drush en modeler

If you are using ECA, ensure you have the eca_ui module enabled as well:

composer require drupal/eca
drush en eca eca_ui

Usage

Once installed, the Workflow Modeler activates automatically when editing models:

1. Navigate to the ECA configuration page (Configuration > Workflow > ECA).
2. Click Add to create a new model, or Edit on an existing model.
3. The modeler interface will open, allowing you to design your workflow.

For detailed documentation, visit the official Workflow Modeler documentation.

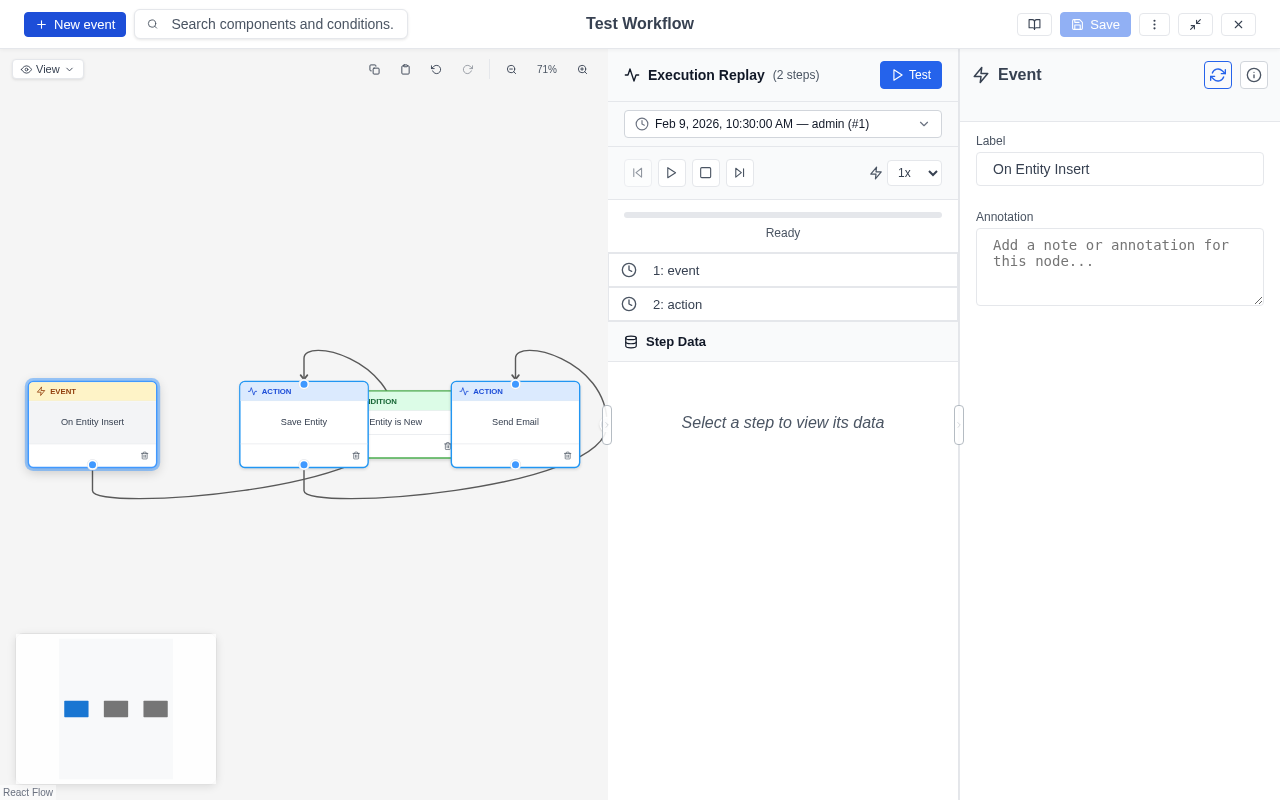

Screenshots
